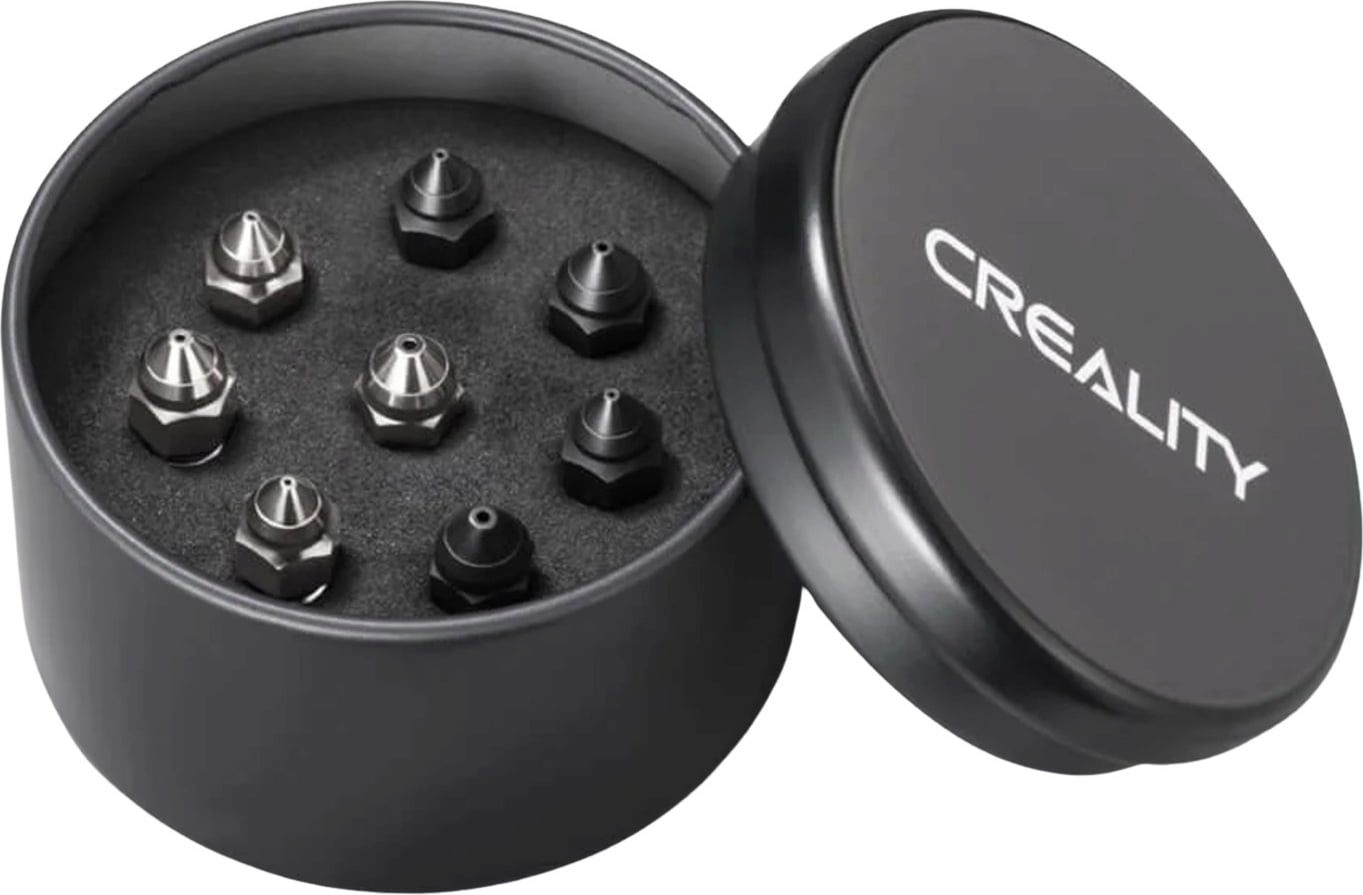

Creality Nozzle Set for K1/K1 Max

This nozzle set from Creality was specially developed for the K1 and K1 Max (2023)* 3D printers. The set comes with two types of nozzles:

► Copper alloy nozzles

The copper alloy nozzles have high thermal conductivity and high flow, making them ideal for high-speed printing. Thanks to the high thermal conductivity (330 W/mk), these nozzles achieve more even nozzle heating, and the larger volume supports high printing speeds of up to 600 mm/s. The nozzles are nickel-plated to prevent material sticking and ensure smoother extrusion. The copper alloy nozzles are temperature-resistant up to 500 °C.

► Hardened steel nozzles

The nozzles made of hardened steel (Mohs hardness of 7.8) are characterised by high hardness, wear resistance and a longer service life. Thanks to an innovative heat treatment process and better oxidation protection, the nozzles have excellent corrosion resistance. The nozzles made of hardened steel are temperature-resistant up to 450 °C.

Their special processing ensures that high-temperature filaments are heated quickly and extruded evenly:

• Smooth inner wall to prevent clogging: The nozzle inner wall has a roughness degree of Ra<0.4 to increase the flowability of the filament and ensure smooth extrusion;
• Precise opening without burrs for smooth feeding;
• Flat surface and seamless connection to prevent filament leakage.

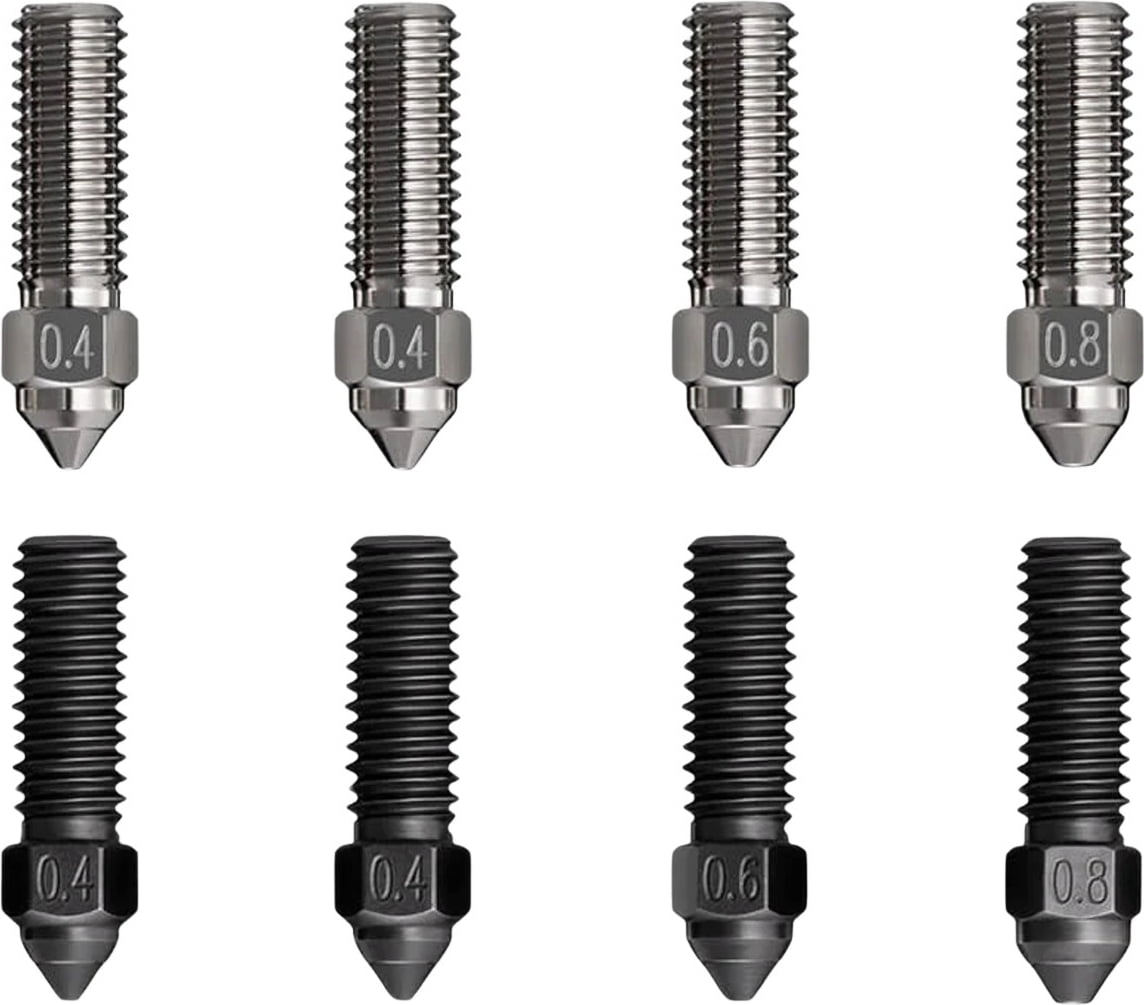

Copper alloy nozzle and hardened steel nozzle in comparison:

Included:

• 2 x 0.4mm Copper Alloy Nozzle
• 1 x 0.6mm Copper Alloy Nozzle
• 1 x 0.8mm Copper Alloy Nozzle
• 2 x 0.4mm Hardened steel nozzle
• 1 x 0.6mm Hardened Steel Nozzle
• 1 x 0.8mm Hardened Steel Nozzle
